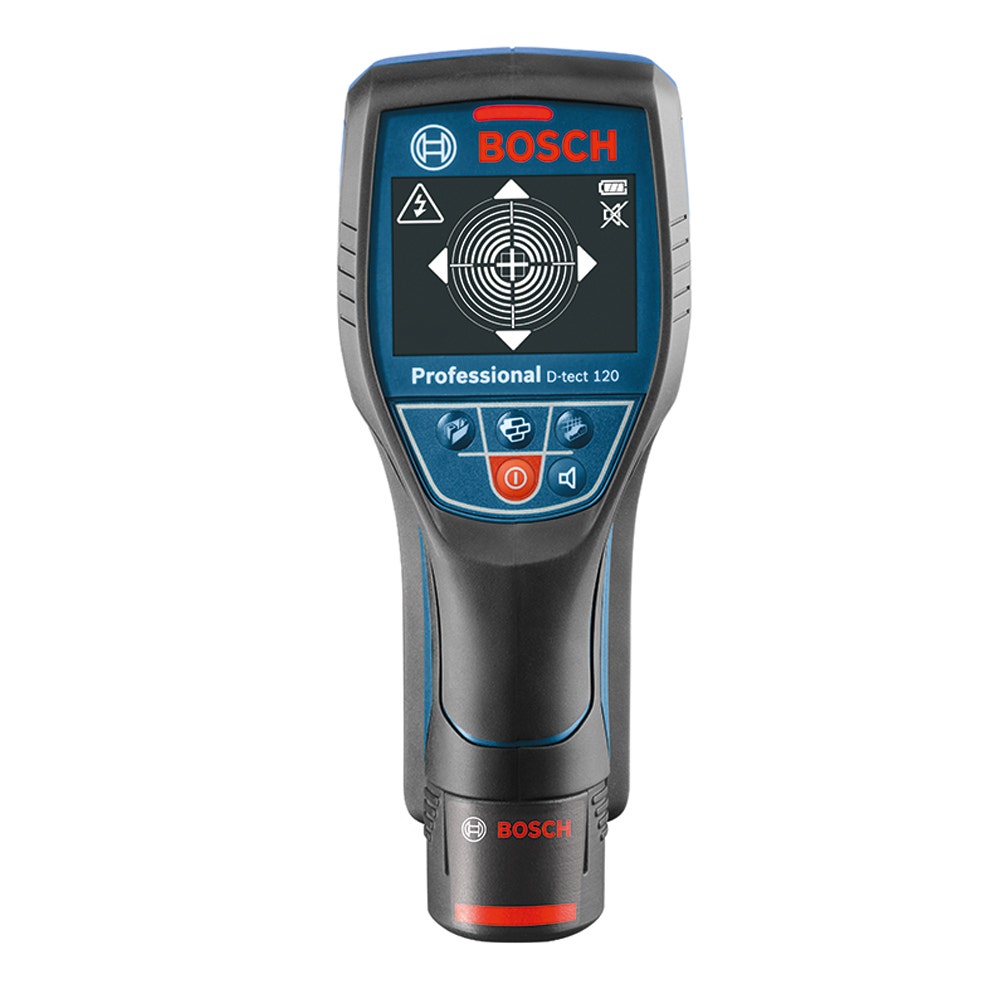

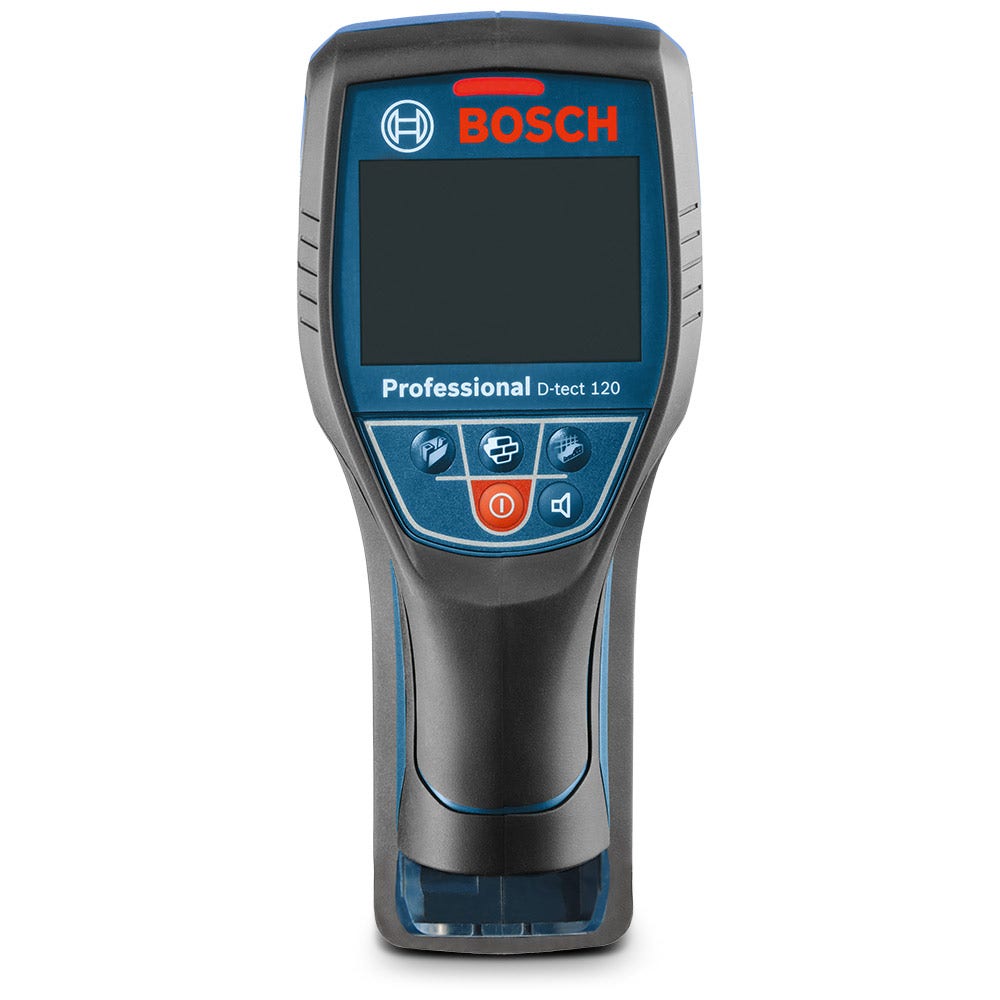

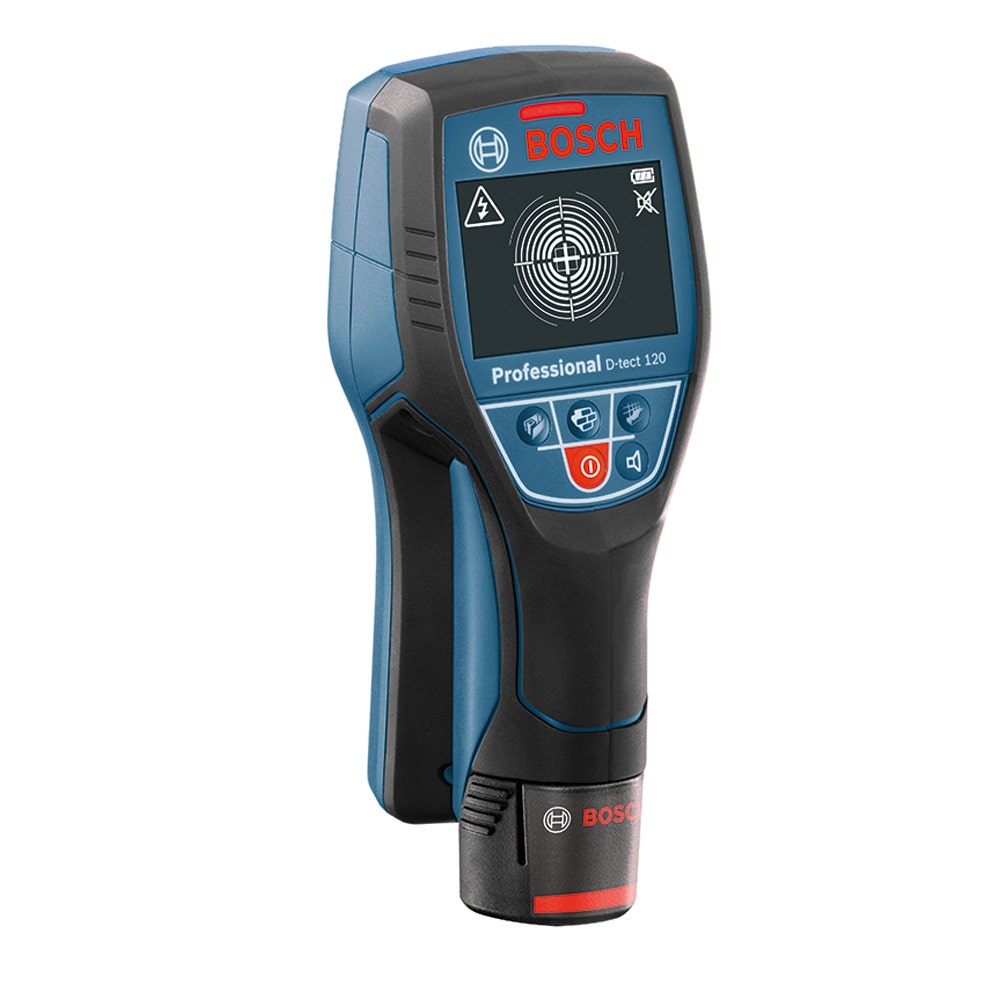

BOSCH Universal Detector D-Tect120 06010813K0

BOSCH Universal Detector D-Tect120 06010813K0 4671366

Sale price EUR €39.42 Regular price EUR €279.00

Quantity

Order summary

BOSCH Universal Detector D-Tect120 06010813K0

39.42

Have a discount code?

Coupon code applied will be stored on your account

Subtotal

Shipping calculated at checkout.

Details

Description

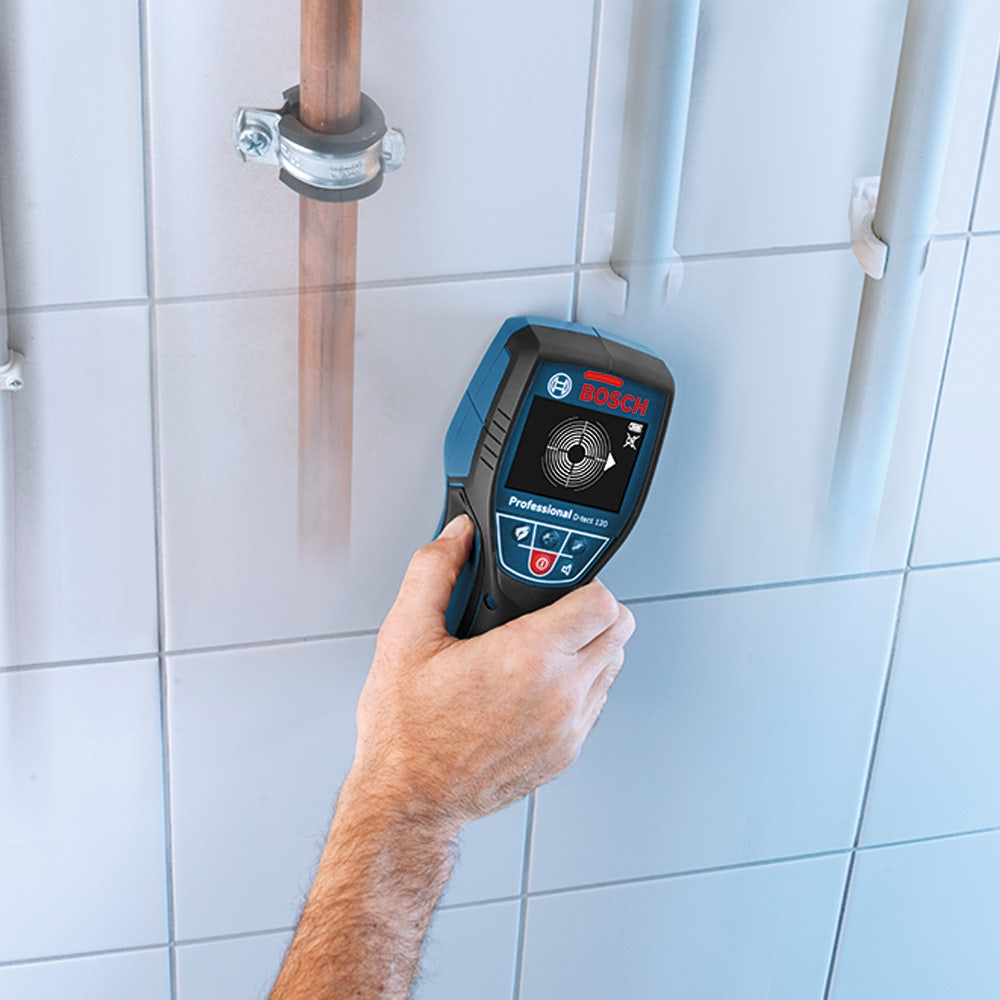

The detector D-Tect 120 Professional is an intuitive radar scanner developed for almost all materials. Spot measurement provides accurate detection on narrow surfaces, while the centre finder shows the precise location of an object's centre. Additionally, Dual Power Source technology allows for use with both a 12 V Li-ion battery or standard alkaline batteries.

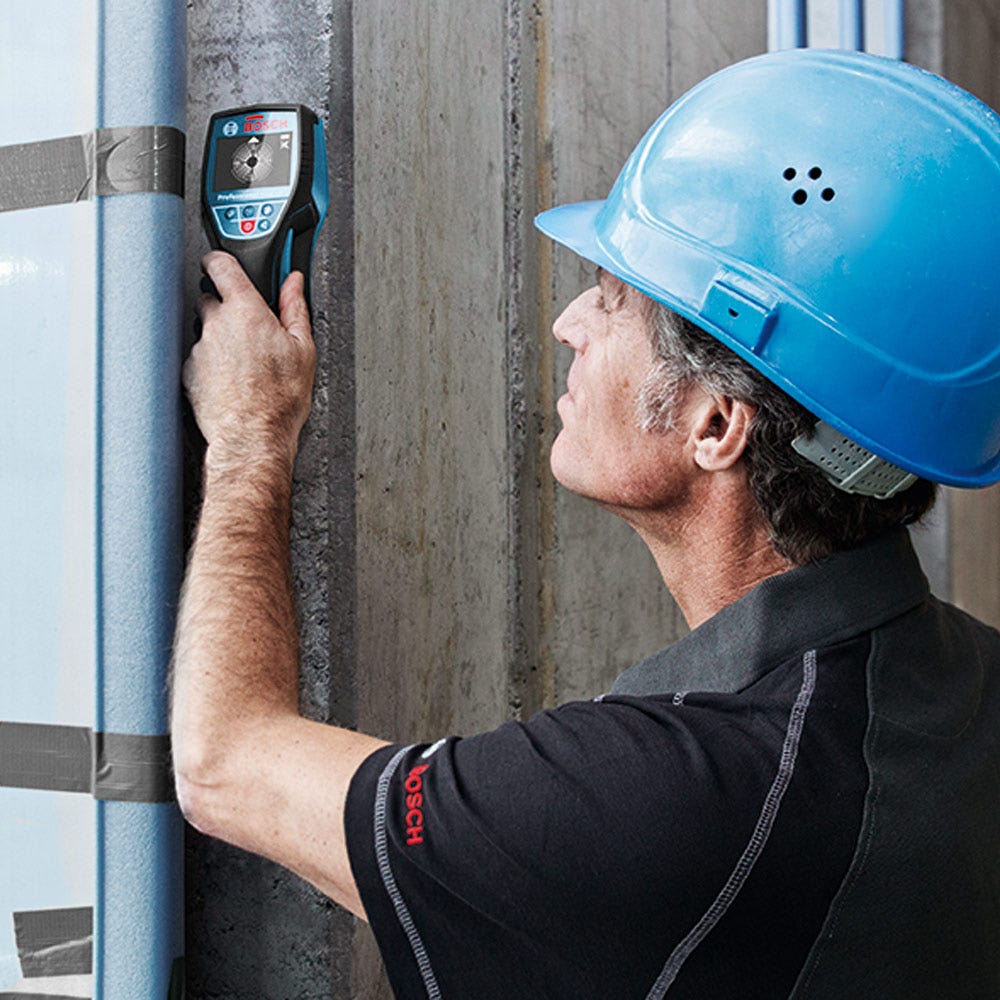

It is suitable for a range of craftsmanship disciplines to locate pipes filled with water and cables as well as to avoid drilling mishaps when performing carpentry, plumbing, electrical, and HVAC applications.

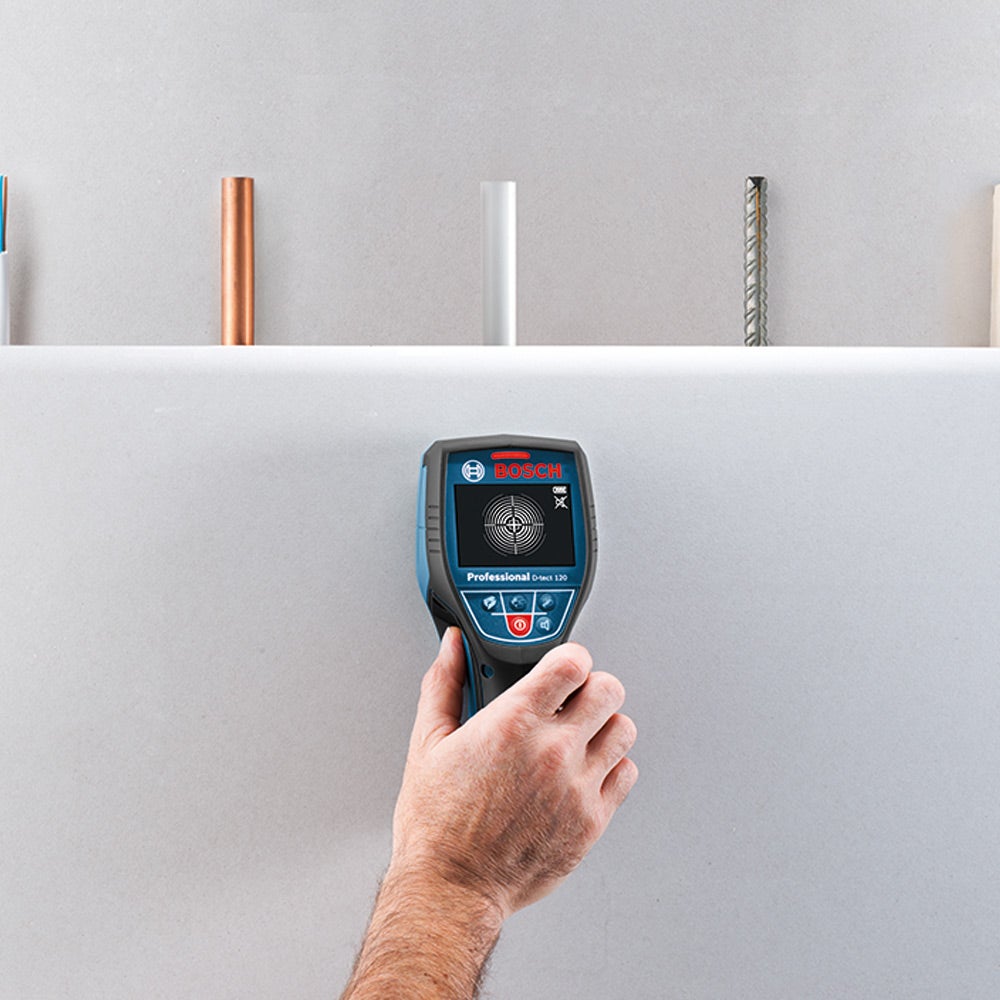

The D-tect 120 Professional offers a simple user interface with three self-explanatory selection buttons for adjusting to various applications and it is able to detect objects at depths of up to 12 cm. Audio and visual signals notify the user when objects are detected in the wall.

Intuitive radar scanner for almost all materials.

Spot measurement provides accurate detection on narrow surfaces

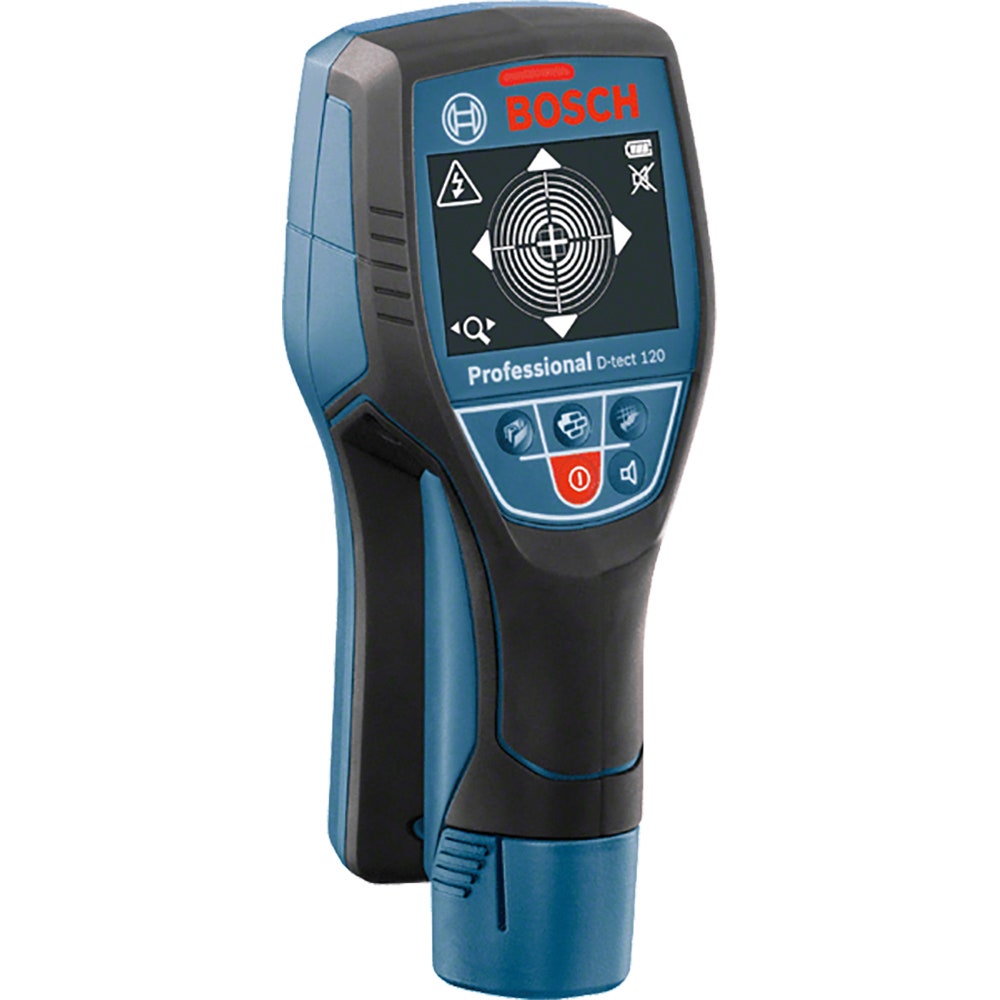

Centre finder offers visual guidance, to clearly identify the precise location of the object's centre

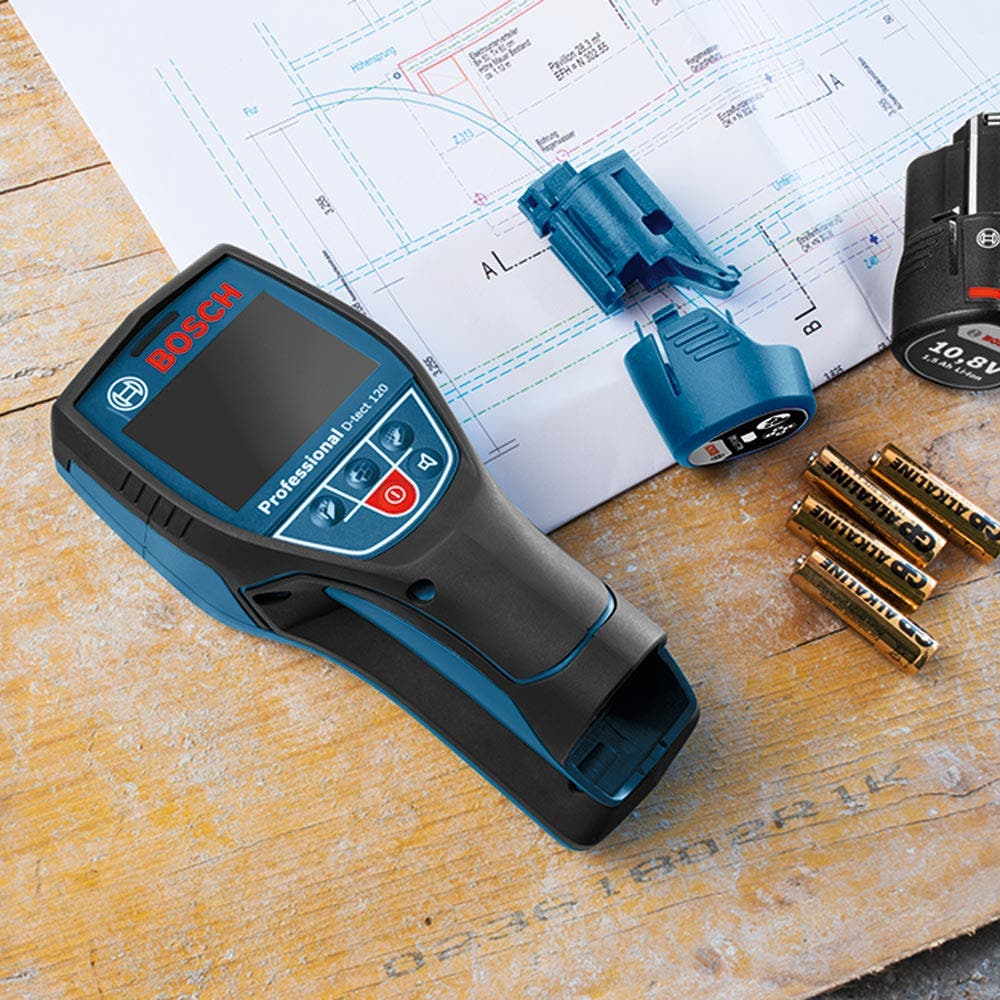

Dual Power Source allows for use with a 12 V Li-ion battery or with standard alkaline batteries
Reliable radar technology delivers great accuracy on wall, panel or floor
Never requires calibration
Can detect in any direction
Three modes: drywall, universal and concrete
The universal mode sees through more materials
Audible and visual warning signals when objects are detected in the wall

Specifications:

Detectable materials: Water-filled plastic pipes, ferrous metals, non-ferrous metals, wooden studs, live cables
Max. detection depth: 120 mm
Detection depth, steel, max.: 120 mm
Detection depth, copper, max.: 120 mm
Detection depth of live cables, max.: 60 mm
Detection depth of wooden substructures, max.: 38 mm
Automatic deactivation, approx.: 5 minutes
Power supply: 10.8 V Li-ion or 4 x 1.5 V LR6 (AA)
Material: Plastic pipes (water-filled), Copper wires (live), Ferrous metals, Non-ferrous metals (copper)
Detection depth, max.: 60 mm, 60 mm, 120 mm, 120 mm, 120 mm, 60 mm, 60 mm
Mode: Concrete, Drywall construction, Universal mode
Additional function: Dual Power (10.8 V/4 x 1.5 V LR6 AA); Centre finder with object direction indicator

Specification

Specifications

Specification
Part No	06010813K0
Barcode	3165140780124
Accuracy (mm)	+/- 10 mm
Brand	Bosch
Warranty	6 Year
Net Weight (kg)	0.32

Videos & Manuals

Manuals

Bosch Universal Detector D-Tect 120 - Data Sheet
Bosch Universal Detector D-Tect 120- Manual
