Description:

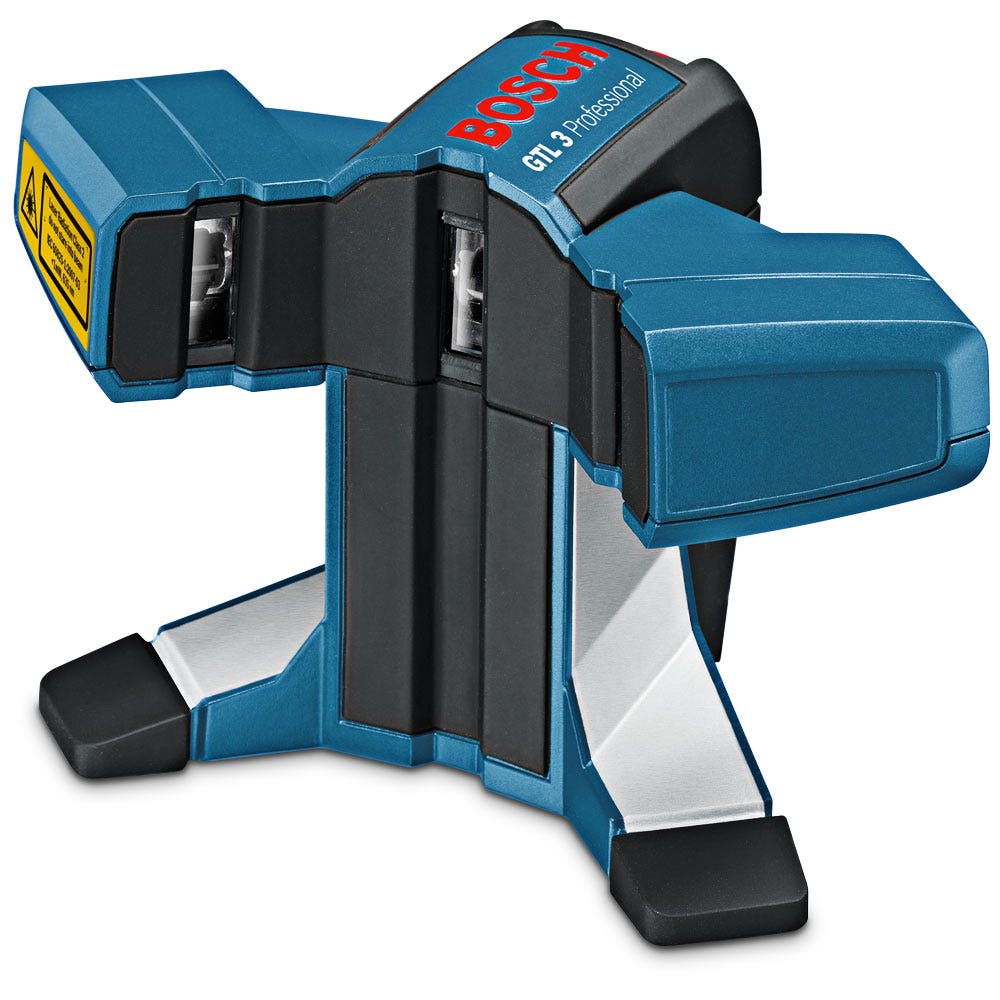

The Tile Laser Level GTL3 Professional is an ideal tool for laying floor and wall tiles. It is the only tile laser level on the market to project a third line in the 45° direction in addition to the two standard right-angled laser light beams. This makes not only parallel laying but also diagonal laying of the tiles very easy and quick. The GTL3 Professional is also very useful when wallpapering, boarding and when laying stones or cables.
The laser light lines of the new tile laser level are clearly visible thanks to the strongly focusing optical components. The range when used with the target plate is 20 metres. The line accuracy of 0.2mm per metre is the best in this tool class.
More convenient working is ensured by the light weight and compact design, and the single-button operation. Two magnetic feet make it easier to fit the tool on a wall or floor using the metal plate that is supplied as standard. The tool is robust, dust and splash-protected to IP54. It remains fully functional after being dropped from a height of one metre.
Specifications:
In addition to the two laser lines at a 90° angle, it projects a third line at 45° for precise and fast alignment and laying of wall and floor tiles
High accuracy of 0.2 mm /mCompact and light weight design for optimum ease of useMetal plate for better stability when working on uneven ground and for fixing to the wallClearly visible laser lines for indoor useAutomatic shutdown to reduce battery consumptionSimple to use with its one button and LED battery indicatorProjects three laser lines for easy parallel and diagonal layingRange of 20 metres with target plate - line accuracy of 0.2 mm per metreLight weight & compact design, and single button operationExtremely robust: fully functional, even after being dropped from a height of 1 m onto concrete. Also dust and splash-protected (IP54)Technical dataLaser diode635 nm, < 1 mW Laser class2 Working range with target20 m Angular accuracy (between 0-90° angle), 0,2 mm /m Dust and splash protectionIP 54 Power supply4 x 1.5 V LR6 (AA)Operating time, max.18 hweight 0,5 kg length 156 mm Width102 mm Height98 mm
Includes:
Red target plateMetal plate for use with magnetic baseProtective carry caseUser Manual4x AA batteries
Specification
Specifications
Specification| Part No | 601015200 |
|---|
| Barcode | 3165140431972 |
|---|
| Brand | Bosch |
|---|
| Warranty | 6 Year |
|---|
| Net Weight (kg) | 0.5 |
|---|
| Product Length (mm) | 156 |
|---|
| Product Width (mm) | 102 |
|---|
| Product Height (mm) | 98 |
|---|
