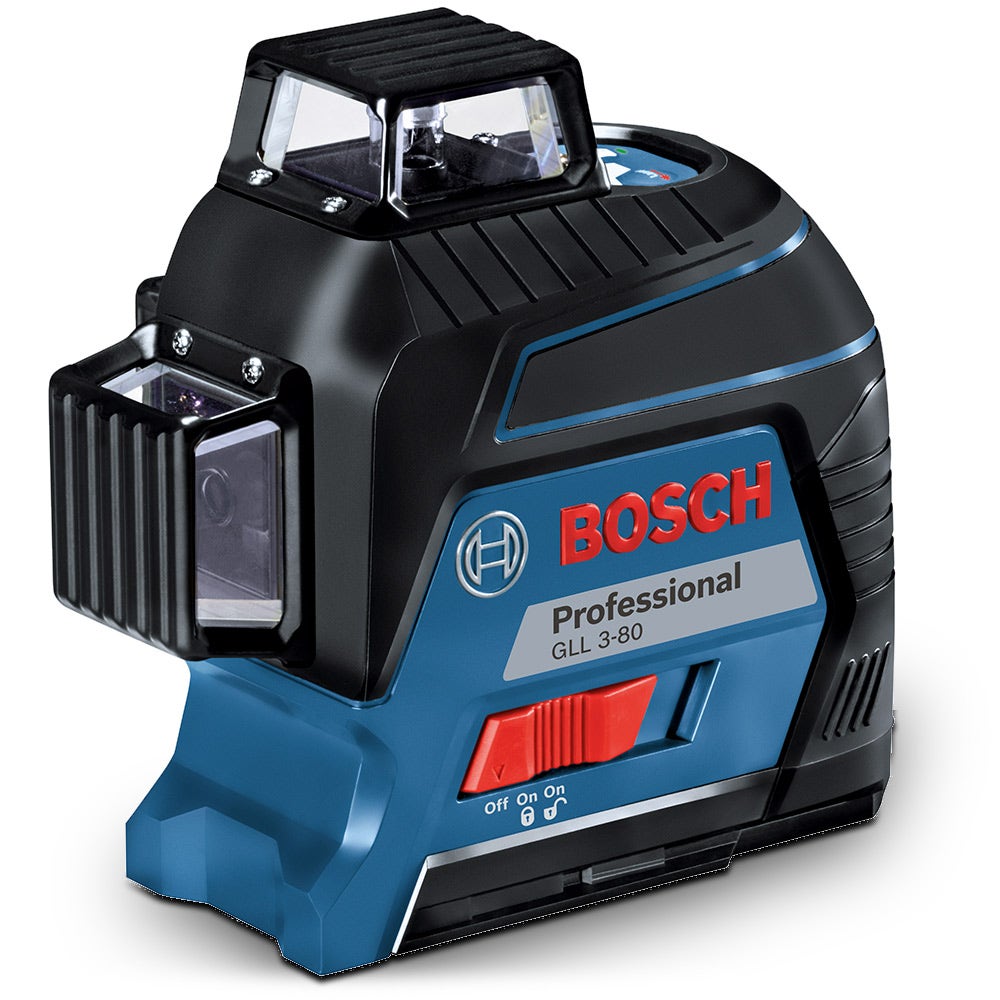

BOSCH Laser Measuring Multi Line 3x360 Red Beams GLL3-80
BOSCH Laser Measuring Multi Line 3x360 Red Beams GLL3-80
BOSCH Laser Measuring Multi Line 3x360 Red Beams GLL3-80
BOSCH Laser Measuring Multi Line 3x360 Red Beams GLL3-80
BOSCH Laser Measuring Multi Line 3x360 Red Beams GLL3-80
BOSCH Laser Measuring Multi Line 3x360 Red Beams GLL3-80
BOSCH Laser Measuring Multi Line 3x360 Red Beams GLL3-80
BOSCH Laser Measuring Multi Line 3x360 Red Beams GLL3-80
BOSCH Laser Measuring Multi Line 3x360 Red Beams GLL3-80
BOSCH Laser Measuring Multi Line 3x360 Red Beams GLL3-80
BOSCH Laser Measuring Multi Line 3x360 Red Beams GLL3-80
BOSCH Laser Measuring Multi Line 3x360 Red Beams GLL3-80
BOSCH Laser Measuring Multi Line 3x360 Red Beams GLL3-80
BOSCH Laser Measuring Multi Line 3x360 Red Beams GLL3-80
BOSCH Laser Measuring Multi Line 3x360 Red Beams GLL3-80
BOSCH Laser Measuring Multi Line 3x360 Red Beams GLL3-80
BOSCH Laser Measuring Multi Line 3x360 Red Beams GLL3-80
BOSCH Laser Measuring Multi Line 3x360 Red Beams GLL3-80

BOSCH Laser Measuring Multi Line 3x360 Red Beams GLL3-80 4670864

EUR €60.47 EUR €428.00

Order summary

BOSCH Laser Measuring Multi Line 3x360 Red Beams GLL3-80
60.47
Have a discount code?
Coupon code applied will be stored on your account

Subtotal
Shipping calculated at checkout.

OR

Buy With
Details

Description

Description

The compact GLL3-80 Multi Line Laser is suitable for most indoor marking and alignment applications.

  • Self-levelling
  • High level of precision/accuracy (± 0.2mm/m)
  • Three 360 degree beams/lines
    • One 360 degree horizontal line
    • Two 360 degree vertical lines
  • Pendulum lock ensures safe transport
  • Extended working range (up to 80m) when used with optional receivers (LR6 or LR7)
  • Extra bright laser - superior visibility

Specifications

  • Operating Range (without receiver): 30m (Radius)
  • Operating Range (with receiver): 120m (Diameter)
  • Accuracy: ± 0.2mm/m
  • Self-Levelling Range: ± 4 degrees
  • Levelling Time: 4 seconds
  • Dust and Splash Protection: IP54
  • Laser Class: 2
  • Laser Diode: Line 630 - 650 nm, <10mW
  • Laser Colour: Red
  • Operating Temperature: -10 - 40 degrees Celsius
  • Storage Temperature: -10 - 70 degrees Celsius
  • Power Supply: 4 x 1.5V LR6 (AA batteries)
  • Operating Time (max): 4 hours (in 3-line mode)
  • Tripod Thread: 1/4" & 5/8"
  • Weight (approx.): 0.82kg

Includes

  • GLL3-80 Multi-Line Laser Level
  • Laser Target Plate
  • 4 x 1.5V (AA) Alkaline Batteries
  • Nylon Pouch
  • Carry Case

Specification

Specifications

Specification
Part No0601063S00
Barcode3165140888356
Laser ColourRed
Laser Class2
Accuracy (mm)+/- 1.5mm
Operating Range (m)30
IP RatingIP54
BrandBosch
Warranty6 Year
Net Weight (kg)0.84

Videos & Manuals

Videos

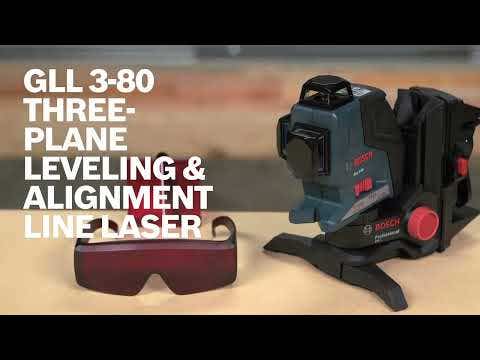

Bosch Multi Line Laser Level 3x360 GLL3 80

Bosch GLL 3 80 360 Degree 3 Plane Leveling and Alignment Line Laser Product

Manuals

  • Bosch Multi Line Laser Level 3x360 GLL3-80 - Manual
